Self Service

Playbooks can be manually triggered on a component, config item or check.

restart-deployment.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Playbook
metadata:
  name: restart-deployment
spec:
  description: Restart deployment
  # only allow the playbook to run on Kubernetes::Deployment config items
  configs:
    - types:
        - Kubernetes::Deployment
  actions:
    - name: kubectl rollout restart deployment
      exec:
        script: kubectl rollout restart deployment {{.config.name}} -n {{.config.tags.namespace}}

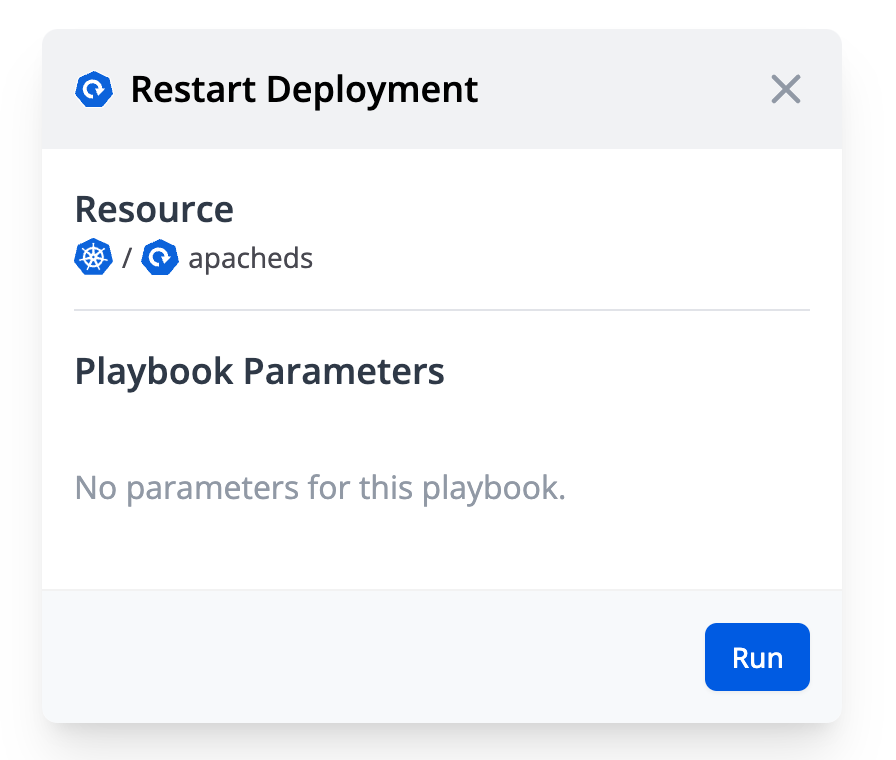

To run the playbook:

a. Navigate to a Deployment in the Catalog
b. Select Restart Deployment from the Playbooks menu
c. Click Run

Resource Filters

Playbooks can be restricted to run on specific config, check and components using resource selectors

restart-deployment.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Playbook
spec:
  configs: # Only applicable to config items
    - types:
        - Kubernetes::Deployment # of this type

Parameters

scale-deployment.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Playbook
metadata:
  name: scale-deployment
spec:
  description: Scale Deployment
  configs:
    - types:
        - Kubernetes::Deployment
  parameters:
    - name: replicas
      label: The new desired number of replicas.
  actions:
    - name: kubectl scale
      exec:
        script: |
          kubectl scale --replicas={{.params.replicas}} \
            --namespace={{.config.tags.namespace}} \
            deployment {{.config.name}}

Playbook parameter defines a parameter that a playbook needs to run.

Field	Description	Scheme	Template Env
name*	Name of parameter.	string
default	Default value of the parameter.	Go Template	Context
description	A short sentence to describe the parameter. This shows up in the input form when running the playbook.	string
icon	Icon for the playbook.	Icon
label	Label of the parameter.	string
properties	Properties of parameter. Varies based on the type	map[string]string
required	Specify if the parameter is required.	bool
type	Type of parameter. (Defaults to "text")	Type

Defaulting

Parameter values can be defaulted from the selected resource

default parameters.yaml
#...
kind: Playbook
spec:
  parameters:
    // Use the config items type and name in the parameter
    - default: 'chore: update $(.config.type)/$(.config.name)'

When running the playbook on a Deployment named mysql the following is pre-populated:

Types

name	Description	UI Component	Schema	Properties
check	Limits the value to a check.	Dropdown	string	Check
checkbox	Boolean value toggle	Checkbox	boolean	-
code	Text area	Code Editor	string	Code
component	Limits the value to a component.	Dropdown	string	Component
config	Limits the value to a config item.	Dropdown	string	Config
list	Specify a custom list of values	Dropdown	string	List
people	Limits the value to people.	Dropdown	string	People
team	Limits the value to teams.	Dropdown	string	-
text	Text input	Text Input	string	Text
millicores	CPU resource	Number	string	-
bytes	Memory resource	Number	string	-

params-sink.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Playbook
metadata:
  name: params-sink
  namespace: mission-control
spec:
  title: Params Kitchen Sink
  actions:
    - name: echo
      exec:
        script: echo {{. | toJSON | shellQuote}} | jq
  configs:
    - types:
        - Kubernetes::Namespace
  description: Test playbook
  category: Kitchen Sink
  parameters:
    - label: Text Input (Default)
      name: text-input
      type: text
      default: "hello world"
    - label: Checkbox
      name: checkbox
      type: checkbox
    - label: Teams Selector
      name: teams
      type: team
    - label: People Selector
      name: people
      properties:
        role: admin
      type: people
    - label: Component Selector
      name: component
      properties:
        filter:
          - types:
              - KubernetesPod
      type: component
    - label: Configs Selector
      name: configs
      properties:
        filter:
          - types:
              - Kubernetes::Pod
      type: config
    - label: Code Editor (YAML)
      name: code-editor-yaml
      properties:
        language: yaml
      type: code
    - label: Code Editor (JSON)
      name: code-editor-json
      properties:
        language: json
      type: code
    - label: Textarea
      name: textarea
      properties:
        multiline: "true"
      type: text
    - label: List
      name: list
      properties:
        options:
          - label: Option 1
            value: option-1
          - label: Option 2
            value: option-2
          - label: Option 3
            value: option-3
      type: list
    - label: secretKey
      name: secretKey
      type: secret

component

Field	Description	Schema
filter[]	Limit the components to these resources	ResourceSelector

config

Field	Description	Schema
filter[]	Limit the config items to these resources	ResourceSelector

checks

Field	Description	Schema
filter[]	Limit the checks to these resources	ResourceSelector

code

Field	Description	Schema
language	e.g. yaml, json, toml, etc.	string

people

Field	Description	Schema
role	Limit the people to the given role	`string

text

Field	Description	Schema
multiline	Render a multiline textarea	boolean

list

Field	Description	Schema
options[].label	Specify label of the list option	string
options[].value	Specify value of the list option	string

Fig: Playbook parameters
